Durkopp Adler M-TYPE DELTA 867-190922
Regular price
£14,400.00
Regular price
£14,400.00
Sale price
£14,400.00
Unit price
per
Tax included.
Couldn't load pickup availability
Regular price
£14,400.00
Regular price
£14,400.00
Sale price
£14,400.00

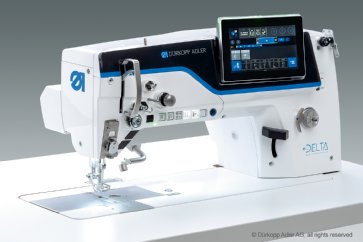

M-TYPE D867 DELTA – Latest control technology for precise and repeatable sewing processes
Your specific advantages of the M-TYPE DELTA D867-190922:
• M-TYPE DELTA with programmable setting elements for reproducible sewing results
• Single needle version with large, two-piece vertical hook (L, bobbin diameter 28 mm)
• Wide range of sewing equipment, devices and additional equipment for demanding sewing jobs
• Integrated sewing motor with network capable “DAC flex control” incl. operating panel Commander Delta ensures optimum functionality and maximum ease of use for “Industry 4.0 applications”
• Machine-specific software with intuitive user interface for convenient administration of sewing parameters 999 storage locations for machine settings (setup) or complex seam programs with 30 seams or sections max
• Graphical visualisation of the process progress within the seam programs
• Programmable setting elements for stitch length adjustment, sewing foot stroke, sewing foot pressure and sewing foot lifting height and needle thread tension by means of integrated stepper motor
• Integrated material thickness detection (MTD) for optimization of sewing parameters during the sewing process
• Optimised working area due to enlarged clearance of 350 mm x 297 mm
• Reproducible handling due to electronically driven, programmable edge guides (optional)
• No compressed air required (except the use of additional equipment like needle cooling or remaining thread monitor)
• Easy and precise needle positioning due to electronical handwheel (scroll wheel)
| Key features | |
| Stitch length | 12 |
| Stitches/min. | 4000** |
| Sewing material | M / MS |
| Single needle | Yes |
| Two needles | N/A |
| Lockstitch (301) | Yes |
| Horizontal hook, large (L, Ø 26 mm) | N/A |
| Vertical hook, large (L, Ø 26 mm) | N/A |
| Vertical hook, large (XL, Ø 28 mm) | Yes |
| Vertical hook, extra large (XXL, Ø 32 mm) | N/A |
| Bottom feed, needle feed and alternating foot top feed | Yes |
| Thread trimmer, automatic | 15mm |
| Short thread trimmer | N/A |
| Thread nipper for a neat seam beginning | Optional |
| Bobbin thread monitor | Optional |
| NSB – “Neat Seam Beginning” | N/A |
| SSD - “Skip Stitch Detection” | Optional |
| MTD - Automativ material thickness detection | Yes |
| Stepper motor driven stitch length adjustment with simultaneous speed limitation according to the feeding length | Yes |
| Stroke of the alternating sewing feet | 9 |
| Stepper motor driven foot stroke and quick stroke adjustment with simultaneous speed limitation according to the stroke height | Yes |
| Clearance when sewing/lifting | A= 10 / B= 20 |
| Stepper motor driven sewing foot lift and sewing foot pressure | Yes |
| Stepper motor driven, programmable thread tension | Yes |
| Electronical needle positioning | Yes |
| Stepper motor driven electronical backtack | Optional |
| Motor driven bobbin winder | Yes |
| Storage capacity for setups/seam programs | 999 |
| Individual programmable complex seam sections | 30 |
| Program control, operating panel Commander DELTA | Yes |
| Underarm LED lighting with dimmer | Yes |
| Integrated LED sewing light with dimmer | Yes |
| Oil maintenance indicator | Yes |
| DA-sewing drive | Yes |
| Long arm versions available as a standard | Optional C=700/1000 / D=129 |
| Specifications | |
| Needle system | 134-36 |
| Needle size | 90-180 |
| Synthetic | 80/3 - 10/3 |
| Dimensions (Length, Width, Height) | 1.060 / 600 / 1.700 |
| Flat bed machine with clearance | C=350 / D=128 |
| Cylinder arm machine with clearance | N/A |
| Post bed machine with clearance | N/A |
| Nominal voltage | 1x230V, 50/60 Hz |
| Rated power | 375 |
| Weight, sewing head | 56-58 |
