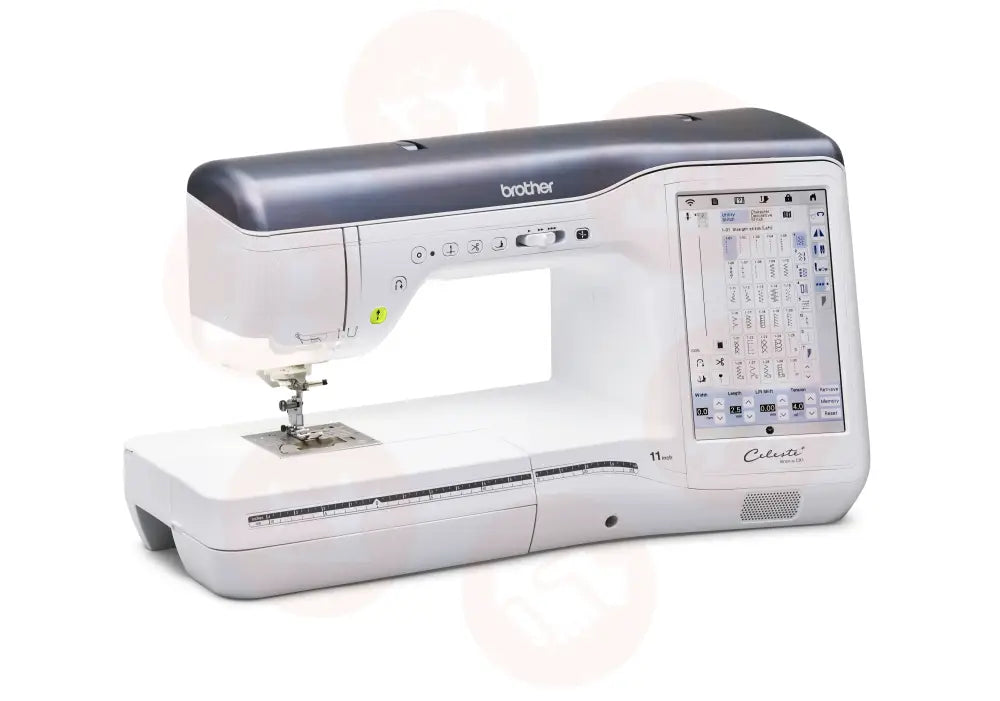

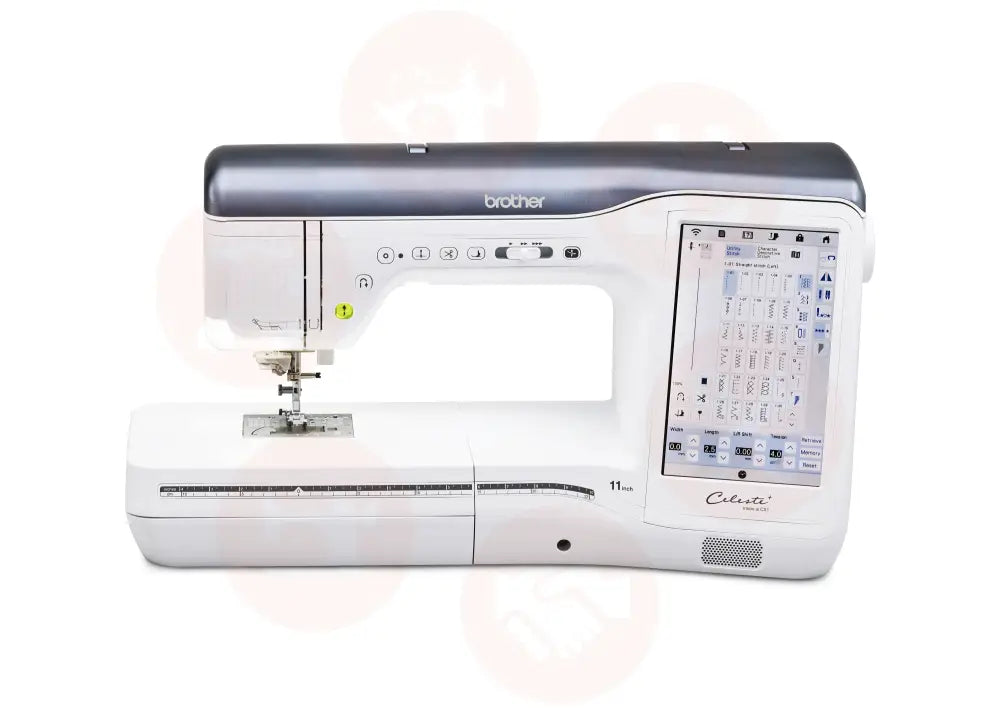

Celeste Innov-is CX1 sewing and quilting machine
Your every stitch is a quest for perfection, that’s why the Celeste CX1 has been built for serious crafters like you. We’ve concentrated on creating a machine that’s full of superior sewing and quilting innovation, so you can concentrate on perfecting your craft.

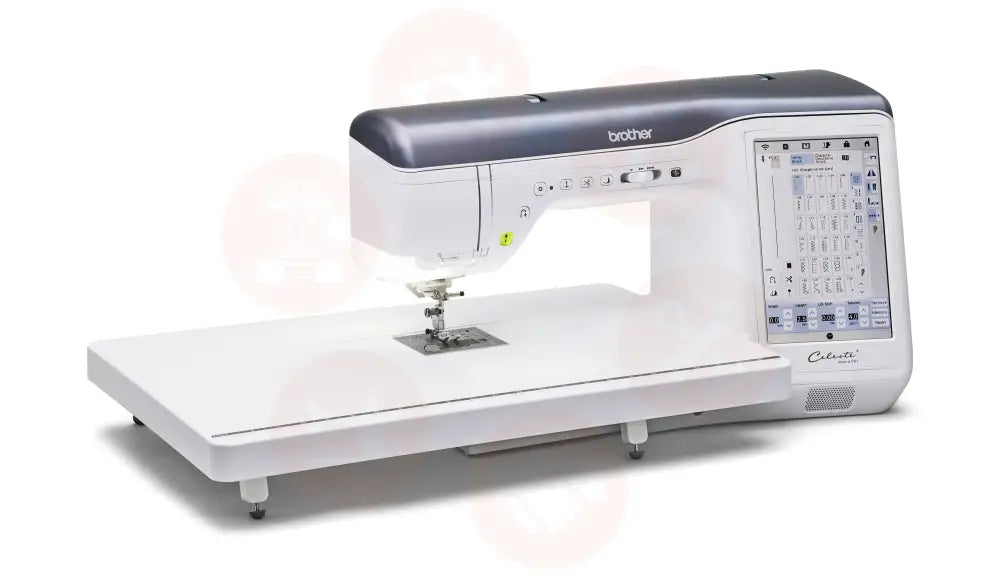

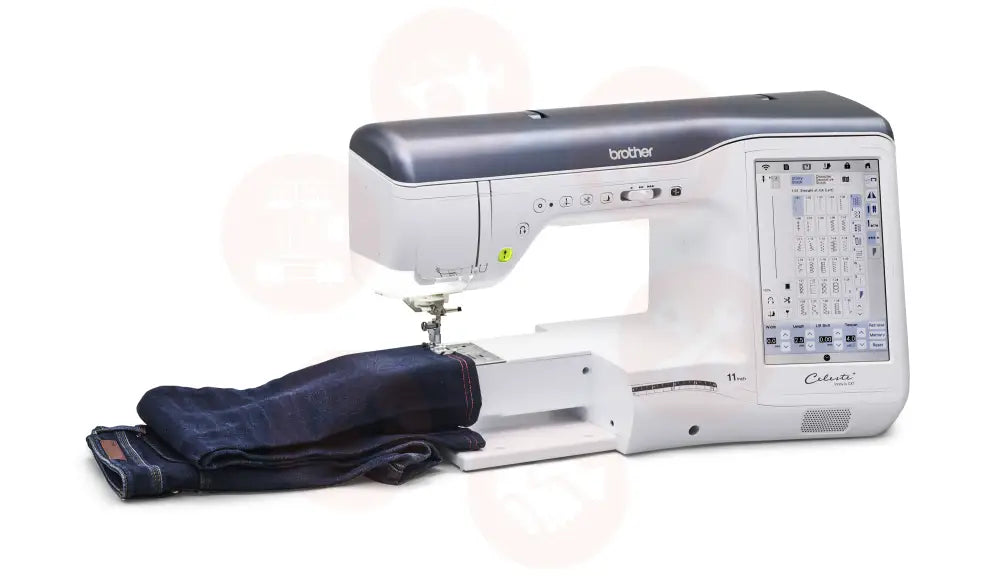

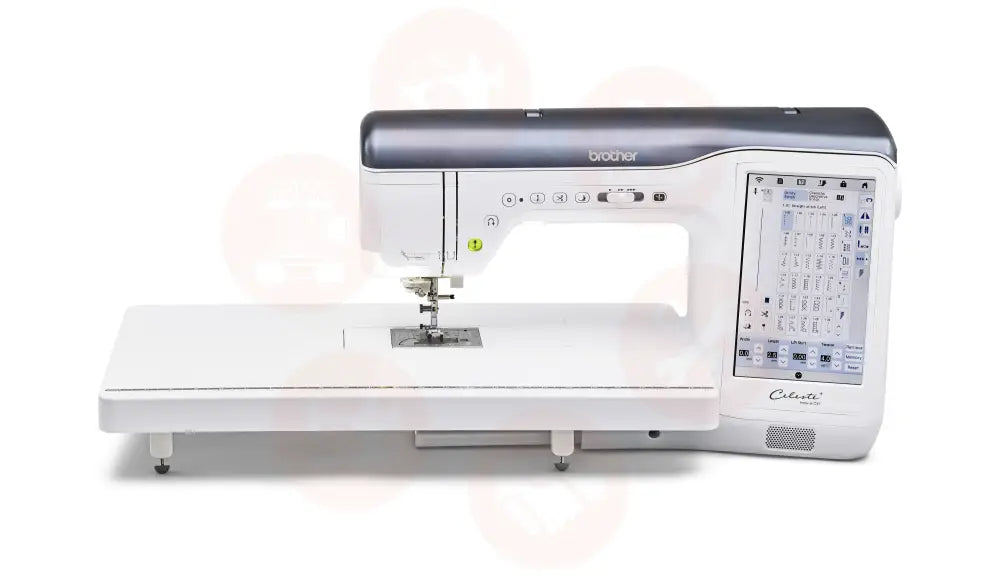

The Brother Celeste CX1 has an impressive extra-large 285mm (11.25”) long arm. You can expand your workspace even further with the included wide table. Perfect for bulky sewing projects like curtains, wedding dresses or king-sized quilts.
The generous 10.1” HD LCD screen, with My Custom StitchTM stitch designer, stitch tapering and enhanced control options such as stitch width up to 7mm and length of up to 5mm, laser sewing guideline for ultimate precision, stitch speed control, presser foot height adjuster, drop feed and pivot functions give you the creative control you need.
It’s never been easier to master free motion quilting, than with Brother’s Intelligent Stitch Regulator (ISR) with infrared edge detection. With the included-as-standard ISR your stitches will be perfectly equal, and you’ll quickly gain confidence with free motion patterns. With adjustable height settings and curved design, fabric flows smoothly under any of the three included presser feet.
Work smarter, not harder with Brother’s built-in innovation – advanced auto needle threader, auto thread trimmer, auto tension, independent bobbin winder, auto presser foot lift, upper and lower thread sensors, ICAPS auto fabric thickness detection, Start/stop button, knee lifter and more.
Isn’t it time you got serious about your sewing and quilting?
Key Features
- Extra-large workspace: 285mm (11.25") long arm, plus included wide table
- 760 built-in decorative and utility sewing stitches, inc 16 buttonholes and 92 satin stitches
- Master free motion quilting – included Intelligent Stitch Regulator
- Fast – up to 1,050spm sewing speed
- Precise – laser sewing guideline
- Easy-access needle plate and newly designed multi-tool
- Automatic electronic needle threader
- My Custom StitchTM – design your own decorative stitches
- 10.1” High resolution LCD touchscreen
- Built-in movie tutorials and MP4 upload function
- Wireless connectivity
- 5-year warranty

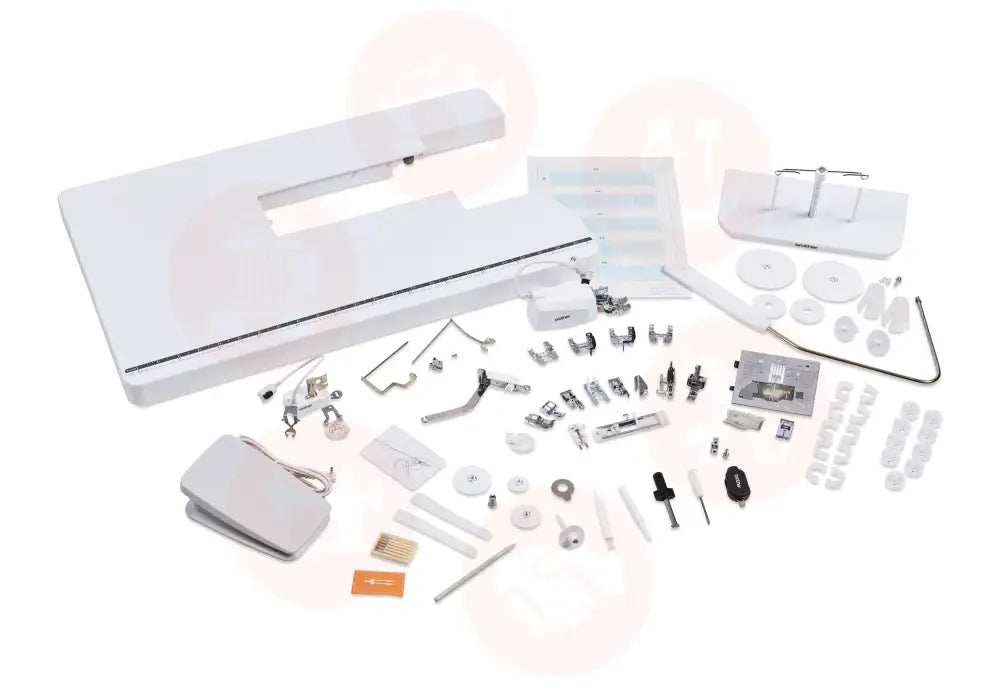

What's in the box
- Advanced monogramming foot “N+”
- Overcasting foot “G”
- Zipper foot “I”
- Buttonhole foot “A”
- Blind stitch foot “R”
- Button fitting foot “M”
- Stitch regulator
- Stitch regulator quilting foot
- Stitch regulator open toe quilting foot
- Stitch regulator echo quilting foot
- Compact dual feed foot
- Regular dual feed foot (on compact dual feed foot)
- Adjustable zipper/piping foot for high shank
- Open toe for the dual feed foot
- Stitch in the ditch dual feed foot
- Dual feed 1/4 inch guide foot
- Dual feed quilting guide
- Couching dual feed foot
- Yarn guide
- Yarn threader
- Straight stitch foot
- Free motion open toe quilting foot “O”
- Free motion quilting foot “C”
- Free motion echo quilting foot “E” *attach the included adapter to use this product
- 1/4" piecing foot with guide
- Adapter
- Screw (small)
- Needle set 75/11 2 needles 90/14 2 needles 90/14 2 needles: ball point needle (gold colored)
- Twin needle 2/11 needle
- Bobbin × 10 (one in machine.)
- Seam ripper
- Cleaning brush
- Eyelet punch
- Screwdriver (small)
- Screwdriver (large)
- Disc-shaped screwdriver
- Multi-purpose screwdriver
- Spool cap (small)
- Spool cap (medium) × 2 (one on machine.)
- Spool cap (large)
- Thread spool insert (mini king thread spool)
- Bobbin clip × 10
- Spool felt (on machine)
- Spool net × 2
- Stylus
- Knee lifter
- Foot controller
- Standard bobbin case (green marking on the screw) (on machine)
- Straight stitch needle plate
- Cord guide bobbin cover
- Bobbin cover (with mark) (on straight stitch needle plate)
- Bobbin cover (on machine)
- Grid sheet set
- Accessory bag
- Telescopic thread guide
- Spool support
- Spool pin × 2
- Screw and washer
- Spool cap (XL) × 2
- Spool holder × 2
- Spool cap base × 2
- Spool felt × 2
- Ring × 4
- Wide table
- Vertical spool pin
- Operation manual
- Quick reference guide
- Dust cover
Features in depth
Sewing Features
Built-in sewing stitches
760 utility and decorative stitches, including 20 tapering, 3 sashiko, 130 compatible with the Dual Feed foot, 16 buttonholes and 92 satin stitch patterns.
Lettering fonts
Four sewing lettering fonts (3 alphabet, 1 cyrillic).
Intelligent Stitch Regulator
Included as standard. With infrared edge detection, adjustable height settings, curved design, and three included presser feet.
Sewing speed
Sew up to 1,050 stitches per minute.
Combination stitches
Individual adjustment for combined stitches (depending on category).
My Custom Stitch™
Create, combine and edit custom stitches; includes 185 built-in sample stitches.
Laser guideline marker
Guideline marker with 19mm side shift capability.
ICAPS fabric sensor system
Continuously adjusts presser foot pressure and auto detects fabric thickness.
Automatic presser foot pressure
Automatic Height Adjuster (AHA) for automatic presser foot pressure.
Lockstitch
Reinforcement stitch at start and end of sewing.
Dual feed
Digital Dual Feed System for even and consistent sewing on all fabrics.
Pivot and foot height
Lightning-quick pivoting functionality with customisable foot height.
Square Feed Drive System
Square feeding system with powerful and long feed dogs.
Needle plate detector
Needle plate detector for safe operation.
Easy to remove needle plate
Swap needle plates easily with newly designed tool.
Straight stitch
Straight stitch needle plate and straight stitch foot included.
Sashiko designs
Three sashiko stitches.
Ruler
Ruler design with zero mark at the needle.
Free motion
Presser foot height adjusts according to the thickness of the fabric.
Drop feed function
Convert to free motion mode easily with a touch of a button on screen.
Automatic presser foot functions
Bring presser foot down automatically using the Start/Stop button, knee lift and foot pedal.
Included accessories
A wide range of presser feet, including the newly designed adjustable zipper foot, as well as the wide extension table are included with the CX1.
Ergonomic multi-function foot controller (optional accessory)
Can be programmed to cut threads, reverse stitch, sew one stitch, needle up/down and No Sew function.
General Features
Lighting
Almost 11” of full-spectrum lighting around the needle with five adjustable brightness settings including off.
Needle threader
Easy to use, automatic needle threading system.
Bobbin winder
Independent bobbin winder system with adjustable winding speed.
Wireless
Wireless capability for easy firmware updates.
Thread tension
Automatic thread tension.
Thread cutter
Trims upper and lower threads automatically.
Presser foot
Automatic presser foot lift and extra high lift.
Thread sensors
Gives you a warning when your upper and lower threads are running low.
Teaching movies
Wide selection of built-in tutorial videos and MP4 playability.
Start/stop button
Ergonomic large start/stop button.
Environment
Save energy with the Eco and Deep Sleep modes.
LCD Display
Large and clear 10.1” (800 x 1280px) built-in HD LCD display.
Intuitive user interface
Easy-to-use screen layout and realistic preview of selected stitches and patterns.
USB connectivity
Connect a USB device such as a memory stick.
Multilingual operational languages
12 built-in languages.
Safety features
Easily disengage needle to make changing presser feet and needles safer and lock the screen to avoid any accidental stitch changes.
Updates
Automatic wireless software update capability.
Specification Details
Machine Information
Machine Size | X-Large |
---|---|
Product Type | Quilting, Sewing, Small Business Use |
Skill Level | Expert, Small Business Use |
General Features
Accessory Compartment | Yes |
---|---|
Bobbin Type | Horizontal |
Case | Semi-rigid soft case |
Machine Type | Electronic |
Insertion of Bobbin | Quick Set Bobbin |
Lighting | 7 LEDs |
Number Of Needles | 1 |
Connectivity
USB Port | 2 Hosts (2.0/2.0) / 0 Slave |
---|---|
Wi-LAN Function | Yes |
Wireless firmware updates | Yes |
Display
Display Size | 10,1" |
---|---|
Stitch Selection | LCD Touchscreen |
Type of Screen | High-Resolution IPS LCD-Touchscreen |
Environment
Eco Mode (Auto Power Off/Sleep Mode) | Yes |
---|
Sewing Features
7 Point Feed Dog | Yes - SFDS (Square Feed Drive System) |
---|---|
Adjustable presser foot | Electronic |
Automatic reverse / reinforcement stitch | Yes |
Bobbin Work | Optional |
Built-In Lettering Styles | 4 (3 Alphabet, 1 Cyrillic) |
Buttonholes | 16 |
Circular Sewing | Optional |
Combine stitches | Yes |
Continuous Automatic Pressure System (ICAPS) | Yes |
Direct Dual Feed | Yes |
Drop feed setting | Electronic |
Electronic slide speed control | yes |
Extension Wide Table | Yes |
Free arm sewing | Yes |
Knee lift | Yes |
Laser Function | Yes |
Lock stitch button | Yes |
Longer Feed Dog | Yes |
Longer J-Foot | Yes |
Max. Sewing Speed (Stitches per minute) | 1050 |
Max Sewing Speed for Decorative Stitches | 710 |
Mirror imaging | Yes |
Multi-Directional Sewing | Yes (up to 8 sideways) |
Multi-function foot controller | Optional |
My Custom Stitch | Yes |
Needle Positions | 29 |
Needle Stop Position Control Up/Down | Yes |
Number of sewing stitches *incl. buttonholes | 760 |
Pivot function | Yes |
Presser Foot Levelling Button | Yes |
Repeated single sewing | Yes |
SFDS (Square Feed Drive System) | Yes |
Snap on Presser Feet System | Yes |
Speed control customised for zigzag width | Yes |
Stitch Length (mm) | 5 |
Stitch Width (mm) | 7 |
Workspace (cm) | 28.5 |
Warranty Information
Warranty | Brother 5 year Warranty *Commercial use only 1 year warranty |
---|
Threading
Adjustable Thread Tension | Automatic |
---|---|
Automatic Thread Cutter | Yes |
Bobbin Winder | Independant |
Lower Thread Sensor | Yes |
Needle Threading System | Automatic |
Upper Thread Sensor | Yes |
Weight and Measurements
Machine Dimension (mm) | 662x324x348 |
---|---|
Weight (kg) | 17.1 |
