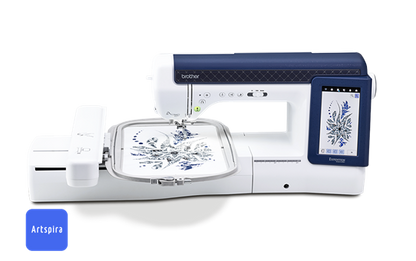

Brother Expedition Innov-is BX1 Sewing, Quilting & Embroidery Machine
Couldn't load pickup availability
**NEW PRODUCT**
FULLY SUPPORTED
BROTHER SEWING APPROVED ENGINEER & DEALER
FREE UK WIDE SHIPPING
READ OUR TRUSTPILOT REVIEWS
BUY NOW – PAY LATER CREDIT AVAILABLE ON CHECKOUT
CREDIT AVAILABLE – SUBJECT TO APPROVAL

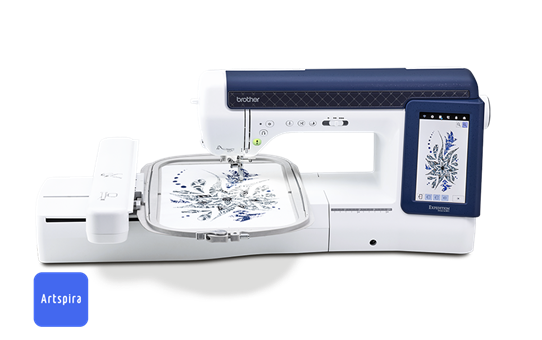

BROTHER EXPEDITION INNOV-IS BX1 SEWING, QUILTING & EMBROIDERY MACHINE
Every journey starts with a single stitch. The Brother Expedition Innov-is BX1 combines advanced sewing, quilting and embroidery technology with creative flexibility and intuitive operation, giving you the tools to take your projects further.
With a generous 360 x 200mm (14 x 8") embroidery area, a large 7" colour LCD touchscreen, 914 built-in embroidery designs and 754 built-in sewing stitches, the BX1 brings extensive creative possibilities together in one versatile machine.
BROTHER EXPEDITION INNOV-IS BX1 – ADVANCED SEWING, QUILTING & EMBROIDERY
The Brother Expedition Innov-is BX1 is designed to combine precision, creativity and advanced technology across sewing, quilting and embroidery.
The machine features 754 built-in sewing stitches, including 14 one-step buttonholes, along with stitch tapering, multi-directional sewing, Curve Sewing, Digital Dual Feed, ICAPS fabric sensing and My Custom Stitch™.
For embroidery, the BX1 provides 914 built-in embroidery designs, 140 frame patterns and 23 embroidery lettering styles, together with advanced design editing, positioning, appliqué and colour-management functions.

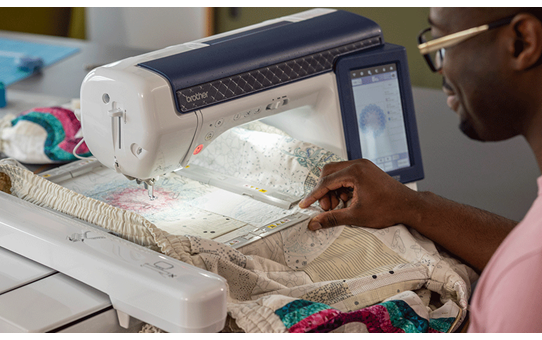

LARGE 360 X 200MM EMBROIDERY AREA
The BX1 provides a generous 360 x 200mm (14 x 8") embroidery area, giving you plenty of room for larger embroidery projects.
Two embroidery frames are included:
- 360 x 200mm (14 x 8")
- 180 x 130mm (7 x 5")
Automatic embroidery frame detection helps identify the selected frame size, while the LED pointer and two-point positioning functions provide accurate positioning for embroidery designs.
914 BUILT-IN EMBROIDERY DESIGNS
The Brother BX1 includes 914 built-in embroidery designs, together with 140 frame patterns and 23 embroidery fonts.
The embroidery system provides:
- 914 built-in embroidery designs
- 140 frame patterns
- 23 embroidery fonts
- S/M/L font sizes
- Multiple-line text input
- Design editing
- Design rotation
- Horizontal mirroring
- Drag-and-drop positioning
- Up to 300% zoom
- Matrix Copy
- Appliqué Creator
- Automatic colour sorting
- Stitch-To-Block density adjustment
- Programmable jump-stitch cutting
The large colour touchscreen provides an intuitive interface for editing and previewing embroidery designs.

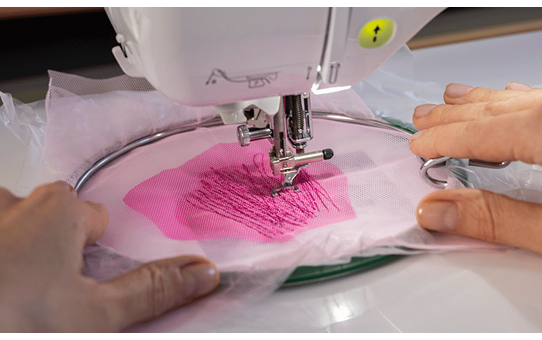

SPECIALIST EMBROIDERY FEATURES
Explore additional creative techniques with built-in 3D appliqué, crochet couching, crochet lace and French knot embroidery.
The BX1 also includes an Appliqué Creator for creating multiple appliqués within one hoop, together with the Matrix Copy function for quickly producing repeated motifs and designs.
PRECISION POSITIONING WITH LED POINTER
The BX1 features an LED drop pointer together with two-point positioning.
This allows you to accurately align embroidery designs along cuffs, edges, pockets and other areas where precise positioning is required.
AUTOMATIC COLOUR SORTING
The automatic colour sorting function organises embroidery colours to optimise the stitching sequence and help minimise unnecessary thread changes.
This can make multi-colour embroidery projects more efficient and reduce interruptions during stitching.
STITCH-TO-BLOCK AUTOMATIC STITCH DENSITY ADJUSTMENT
The Stitch-To-Block function provides on-screen automatic stitch-density adjustment for embroidery and lettering.
This provides additional control when preparing embroidery designs and lettering for stitching.
PROGRAMMABLE JUMP STITCH CUTTING
The BX1 features programmable jump stitch cutting, allowing jump stitches to be trimmed automatically during embroidery.
This helps reduce the amount of manual trimming required after completing embroidery designs.
754 BUILT-IN SEWING STITCHES
The BX1 includes 754 built-in sewing stitches, including 14 one-step buttonholes and 20 tapering stitches.
Additional sewing functions include:
- My Custom Stitch™
- Stitch tapering
- Combining patterns
- Mirror imaging
- Repeated or single sewing
- Vertical pattern adjustment
- Multi-directional sewing
- Curve Sewing
- Digital Dual Feed
- SFDS Square Feed Drive System
- ICAPS fabric sensing
- Pivot function
- Free-motion sewing
- Electronic drop feed
- Knee lift
- Electronic slide speed control
- Lockstitch button
The maximum sewing speed is 850 stitches per minute.
CURVE SEWING FUNCTION
The Brother BX1 introduces Curve Sewing, allowing you to sew curves, arcs and circles with smooth and even stitching.
The feed dogs guide the fabric during sewing to help create curves without jumps or jags.

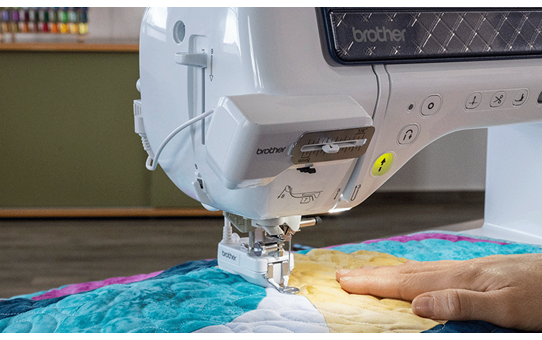

DIGITAL DUAL FEED & ICAPS FABRIC SENSING
The Digital Dual Feed System provides even and consistent fabric feeding across different materials.
The ICAPS Continuous Automatic Pressure System continuously detects fabric thickness and automatically adjusts the pressure to help maintain even stitch quality.
LARGE 7" COLOUR LCD TOUCHSCREEN
The BX1 features a large 7" LCD colour touchscreen with an intuitive interface for selecting and editing embroidery designs.
The display provides:
- Embroidery design editing
- Design rotation
- Horizontal mirroring
- Drag-and-drop operation
- Up to 300% zoom
- Text editing
- Curving and arraying text
- Spacing adjustment
- S/M/L font sizes
- Realistic design preview
- Direct colour changes
ADVANCED THREADING AND BOBBIN SYSTEM
The Brother BX1 is designed for convenient everyday operation with an advanced range of threading and bobbin features.
These include:
- Advanced one-action needle threading
- Quick-set drop-in bobbin
- Fully automatic upper thread tension
- Upper and lower thread sensors
- Automatic thread cutter

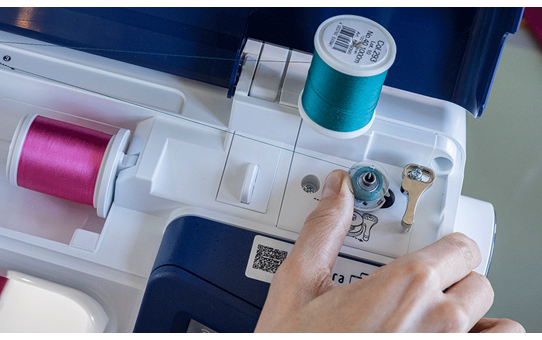

- Enhanced bobbin winding
- Extra spool pin
- Automatic presser-foot lift
- Extra-high presser-foot lift
The thread sensors provide warnings when the upper or lower thread is running low.
WIRELESS CONNECTIVITY
The BX1 features Wireless LAN connectivity, allowing wireless firmware updates and connection with compatible Brother applications.
The machine can connect with Artspira and My Stitch Monitor, while Brother embroidery design and digitising software can provide additional creative possibilities.

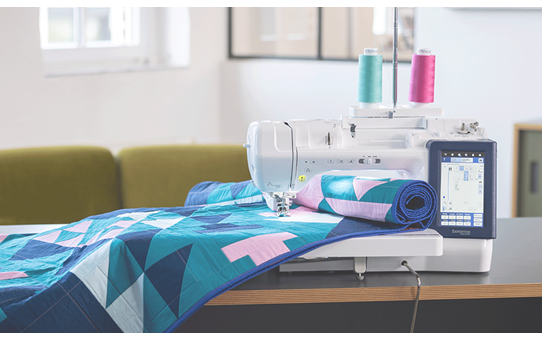

FREE-MOTION SEWING & QUILTING
The BX1 can be converted for free-motion sewing by electronically dropping the feed dogs.
The machine is also ISR (Intelligent Stitch Regulator) compatible and includes a knee lift, making it suitable for free-motion quilting and larger sewing projects.
LARGE 254MM WORKSPACE
The BX1 provides a large 254mm (10") workspace to the right of the needle, giving additional room for larger sewing and quilting projects.

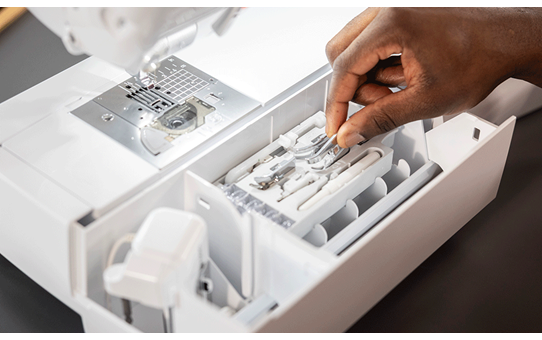

WHAT'S INCLUDED
The Brother BX1 is supplied with a comprehensive selection of sewing, quilting and embroidery accessories, including:
- Zigzag foot "J"
- Monogramming foot "N"
- Overcasting foot "G"
- Zipper foot "I"
- Buttonhole foot "A"
- Blind stitch foot "R"
- Button fitting foot "M"
- Free-motion open-toe quilting foot "O"
- 1/4" piecing foot with guide
- Straight stitch foot
- Compact Dual Feed foot
- Embroidery foot "UH+" with LED pointer
- Embroidery couching foot "Y"
- Yarn guide
- Yarn threader
- Needle set
- Ball point needle set
- Twin needle
- Bobbins × 10
- Bobbin clips × 10
- Seam ripper
- Scissors
- Cleaning brush
- Eyelet punch
- Large, small, L-shaped and disc-shaped screwdrivers
- Spool caps
- Thread spool insert
- Spool net
- Embroidery needle plate cover
- Knee lifter
- Standard and alternate bobbin cases
- Straight stitch needle plate
- Bobbin covers
- Embroidery frame set 360 × 200mm
- Embroidery frame set 180 × 130mm
- Embroidery bobbin thread
- Stabiliser material
- Touch pen
- Grid sheet set
- Power cord
- Accessory bag
- Extra spool pin
- Telescopic thread guide
- Spool pins
- Spool caps and bases
- Spool felt
- Spool holders
- Rings
- Foot controller
- External guideline marker
- Guideline scale
- Cord guide
- Shell-type machine cover
- Basic Operation Manual
BROTHER EXPEDITION INNOV-IS BX1 SPECIFICATIONS
| Specification | Details |
|---|---|
| Product Type | Embroidery, Quilting, Sewing |
| Skill Level | Expert, Intermediate |
| Machine Type | Electronic |
| Embroidery Area | 360 × 200mm (14 × 8") |
| Maximum Embroidery Speed | 850 stitches per minute |
| Maximum Sewing Speed | 850 stitches per minute |
| Built-in Embroidery Designs | 914 |
| Built-in Frame Patterns | 140 |
| Built-in Embroidery Fonts | 23 |
| Included Embroidery Frames | 180 × 130mm and 360 × 200mm |
| Display | 7" LCD Colour Touchscreen |
| Built-in Sewing Stitches | 754 |
| Buttonholes | 14 |
| Workspace | 25.4cm |
| Bobbin Type | Horizontal / Quick Set Bobbin |
| Thread Tension | Automatic Upper Thread Tension |
| Needle Threading | Advanced One-Action Needle Threading |
| Automatic Thread Cutter | Yes |
| Upper Thread Sensor | Yes |
| Lower Thread Sensor | Yes |
| LED Pointer | Yes |
| Two-Point Positioning | Yes |
| Couching Embroidery | Yes |
| Jump Stitch Trim | Yes |
| Automatic Colour Sorting | Yes |
| Digital Dual Feed | Yes |
| ICAPS | Yes |
| Curve Sewing | Yes |
| My Custom Stitch | Yes |
| Knee Lift | Yes |
| Free Arm Sewing | Yes |

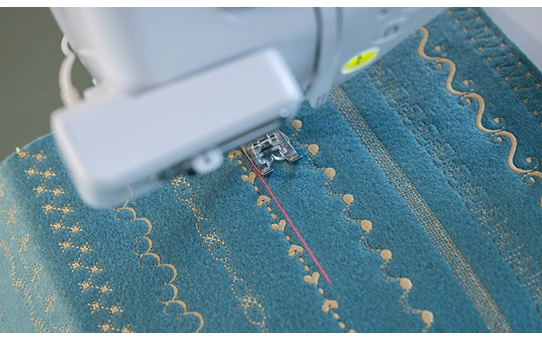

| Laser Function | Yes |
| Wireless LAN | Yes |
| Wireless Firmware Updates | Yes |
| USB Port | Yes |
| Machine Dimensions | 815 × 309 × 524mm |
| Warranty | Brother 3 Year Warranty* |
*Commercial use only: 1-year warranty.
TAKE YOUR CRAFT ON AN EXPEDITION
From detailed embroidery and personalised designs to quilting and advanced sewing projects, the Brother Expedition Innov-is BX1 brings together extensive built-in designs, intelligent positioning functions, advanced sewing technology and creative embroidery features in one versatile machine.
With its 360 × 200mm embroidery area, 914 built-in embroidery designs, 754 sewing stitches, Curve Sewing, Digital Dual Feed, ICAPS, wireless connectivity and free-motion capabilities, the BX1 is equipped to support a wide range of creative projects.
