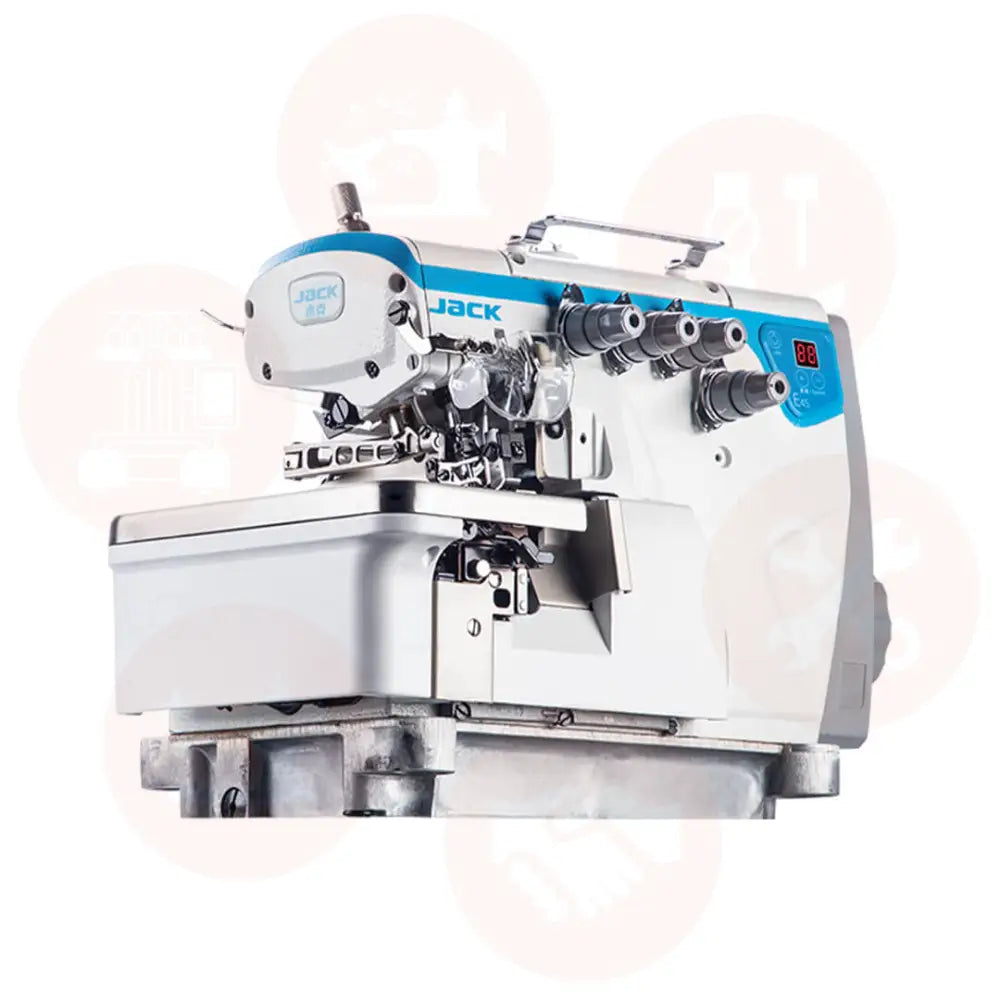

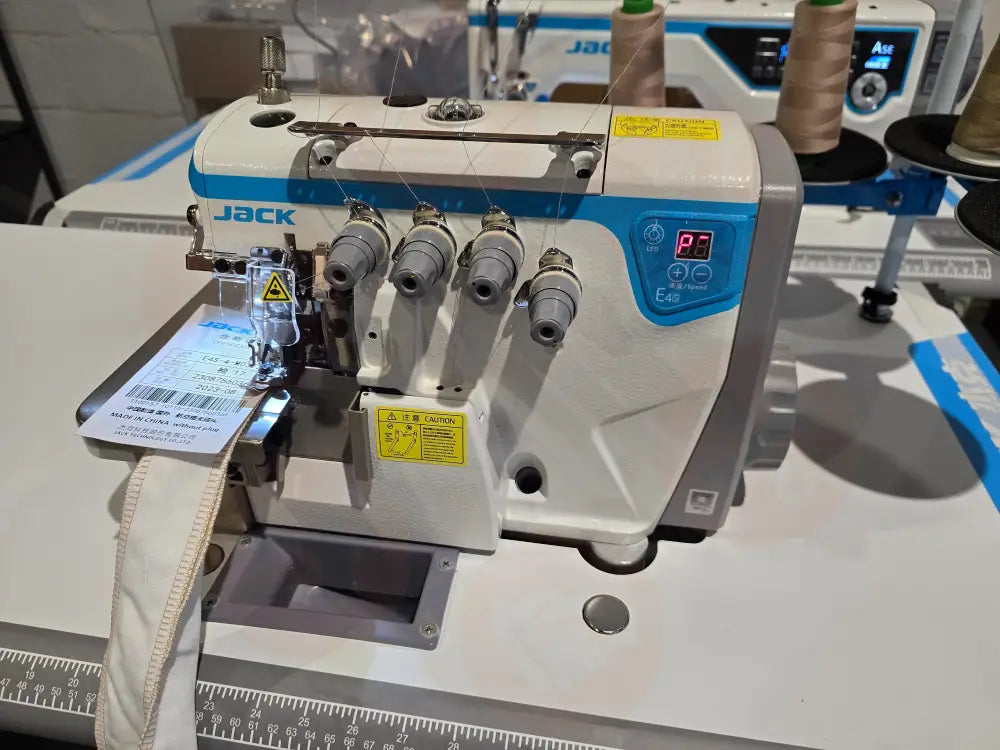

Jack E4S 4 Thread Overlocker

JACK E4S-4-M03/333 4 Four Thread Overlocker UK wide delivery.

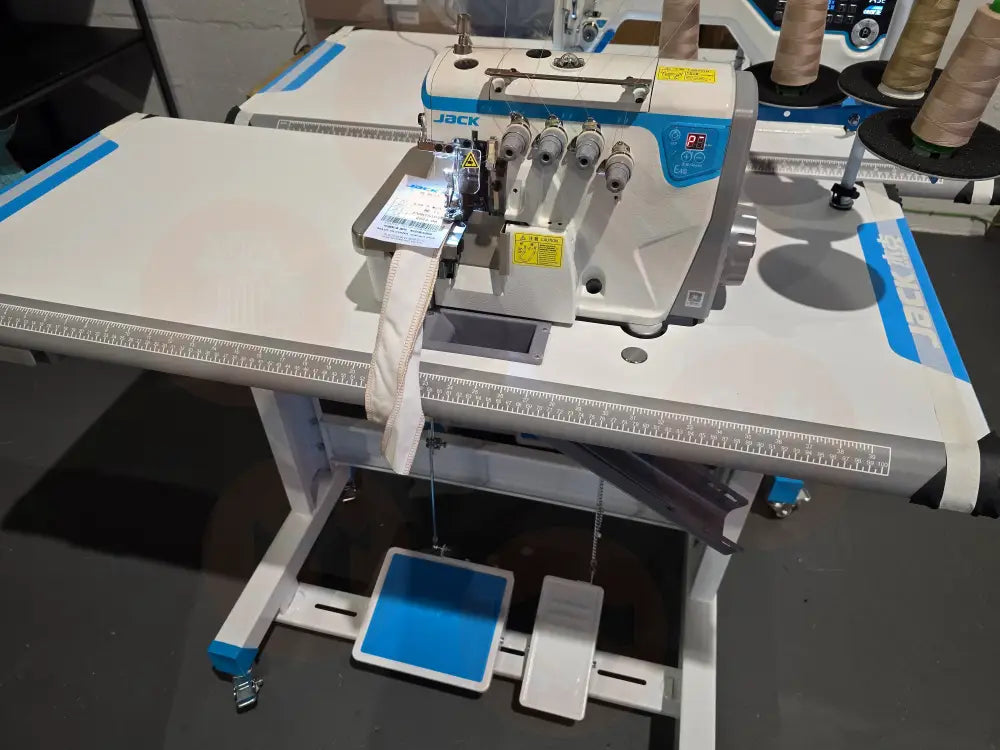

 JACK E4S-4-M03/333 4 Four Thread Overlocker Complete with Table, Frame, Thread Stand, Drawer and ready to Sew.

This machine is supplied with minimal setup required and ready to sew.

This machine comes equipped with an integrated energy-saving motor mounted in the head directly on the main shaft of the machine (Direct Drive system), which guarantees quiet, reliable operation and lower electricity consumption. The modern design of the machine ensures better ventilation of the engine, and thus faster and more efficient operation, which also results in a longer service life of the machine. The Jack E4S Overlocker has a simple panel for adjusting the sewing speed and needle positioning, as well as the ability to quickly return to the factory settings.

Key Features:

L/M/H Selector

By simple means of a lever, it is possible to change the inclination of the feed dog on this machine, according to the type of light, medium, or heavy-duty fabric, allowing you to use one machine to meet needs of various work.

Quick Response

The response time on this machine is shortened by 40-50% both at start and stop, sewing is easier, and the sewing speed is greater, which efficiently increases productivity.

One Key Reset

Through the intelligent panel it is possible to reset the machine, adjust the LED light, easily adjust the sewing parameters, and learn the main operations all at the touch of a button.

Single Shaft Motor

The torsion of the machine is slightly reduced, and greater stability is ensured during the stroke, meaning the sewing speed increases and there is more durability.



Technical Specifications

• Application: plain seaming

• Needle System: B27

• Number of Needles: 2

• Number of Threads: 4

• Needle Distance: 2mm

• Stitch Width: 4mm

• Stitch Length: 4.6mm

• Differential Ratio: 0.7-2

• Presser Foot Lifting Height: 5.5mm

• Max Speed: 5500 (S.P.M)
